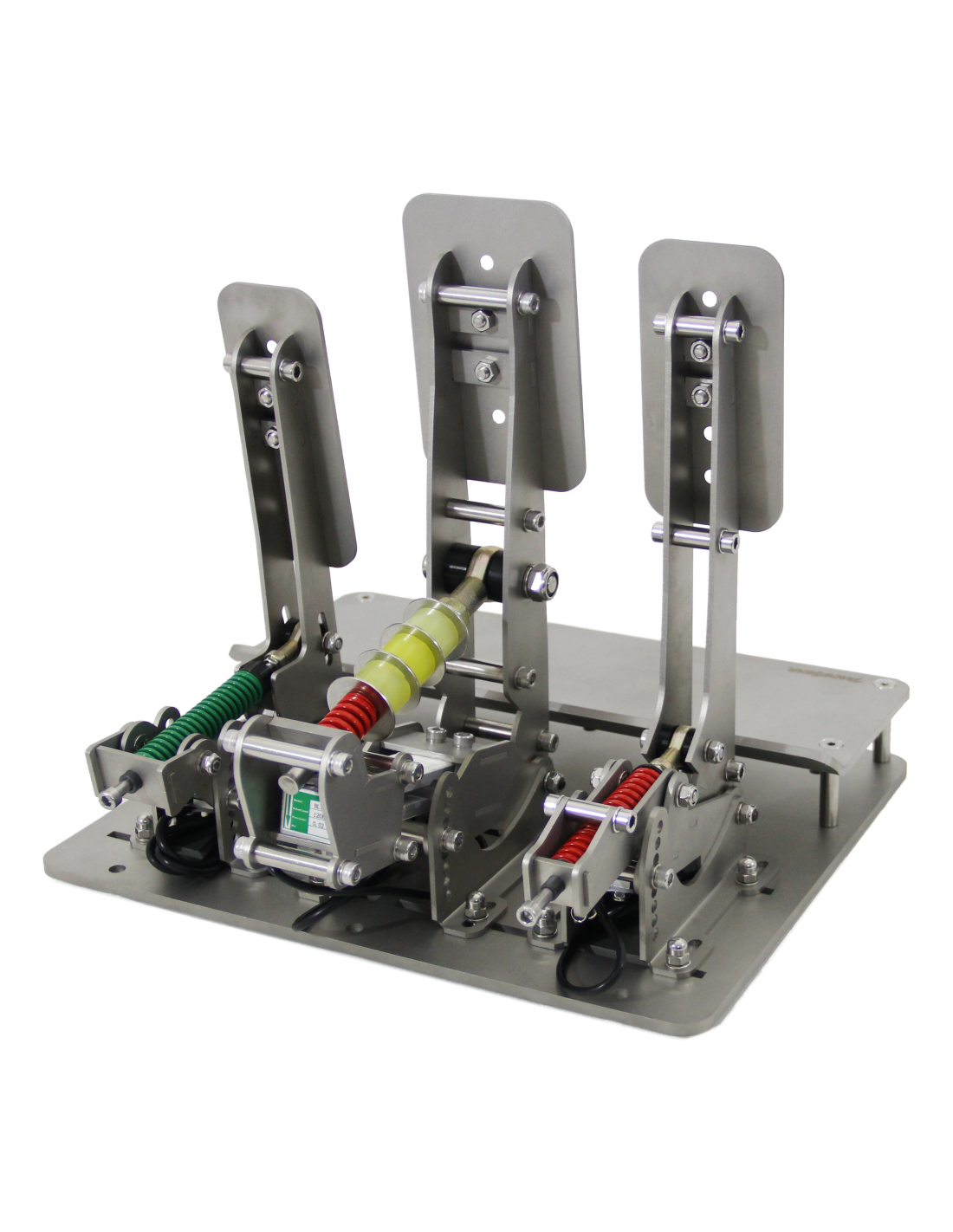

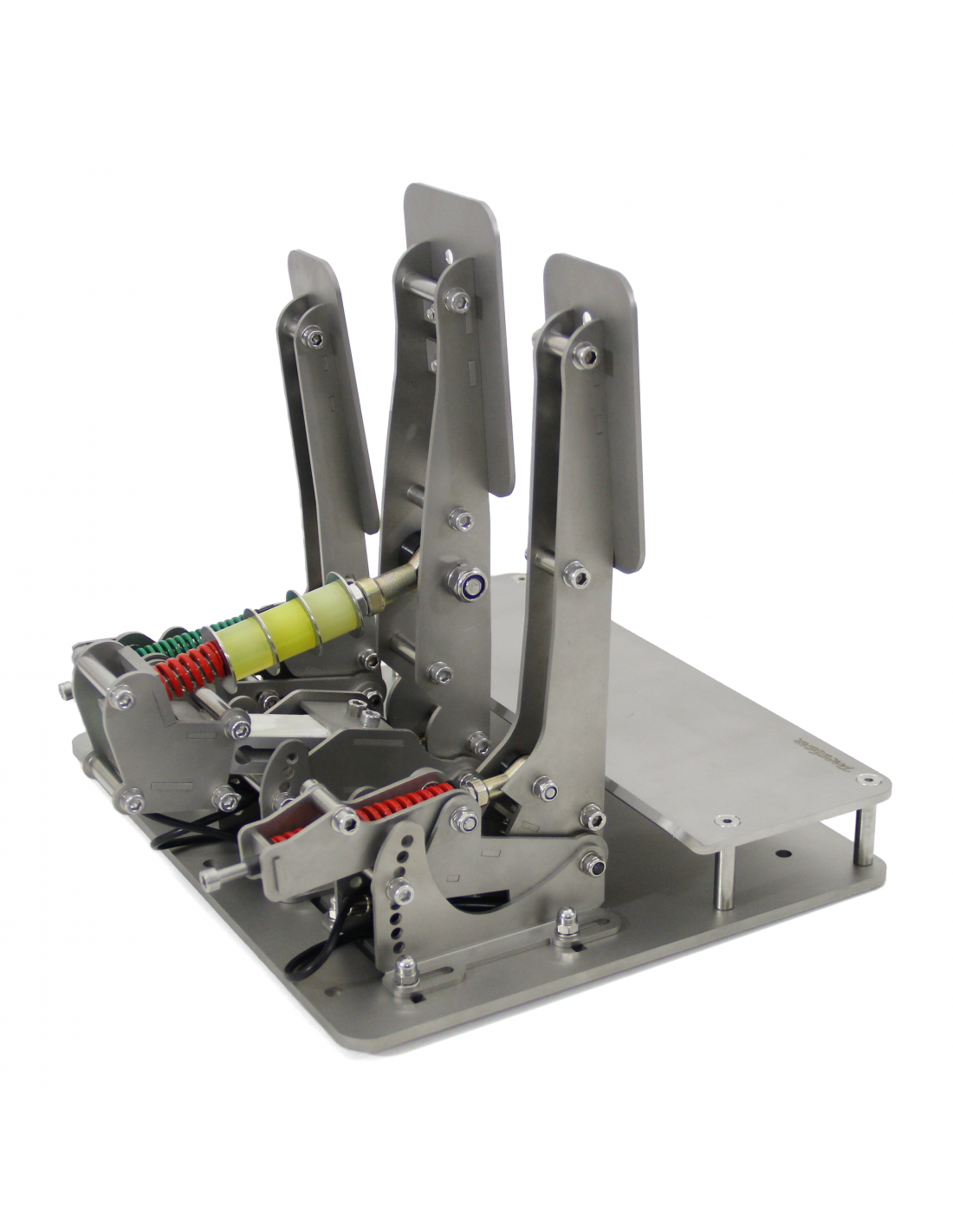

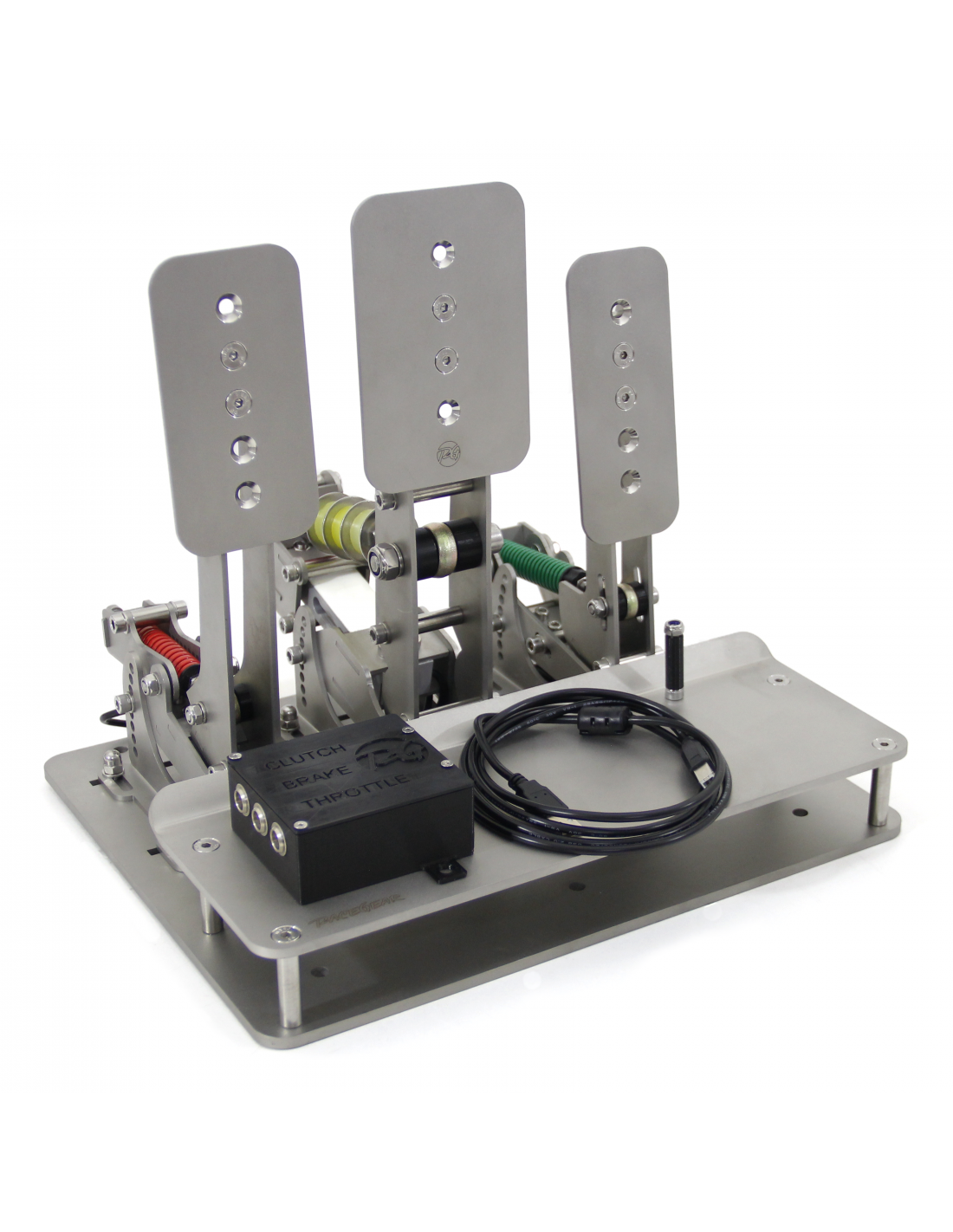

Key features of RaceGear Lightning pedals

• large pedals made from 3mm stainless steel sheet with blasting surface treatment without sharp edges
• the complete set of pedals weighs more than 12 kg
• all metal parts made of stainless steel of A2 quality (no zinc rollers and the like)
• custom 3D printed parts for maximum accuracy and minimum clearance
• custom loadcells (pressure sensors) with 60cm shielded cables and professional XLR mini connectors
• ecological packaging only made of fully recyclable materials (no plastics), manual and other documentation can be found only online
• stainless steel made of which 90% of racegear pedal parts are made is fully recyclable and is already 60% made of recycled material
• developed and manufactured in the EU (Czech Republic)
• 2-year warranty
• tested for several hundred hours and developed by, among others, an iRacing player with a rating of over 6500

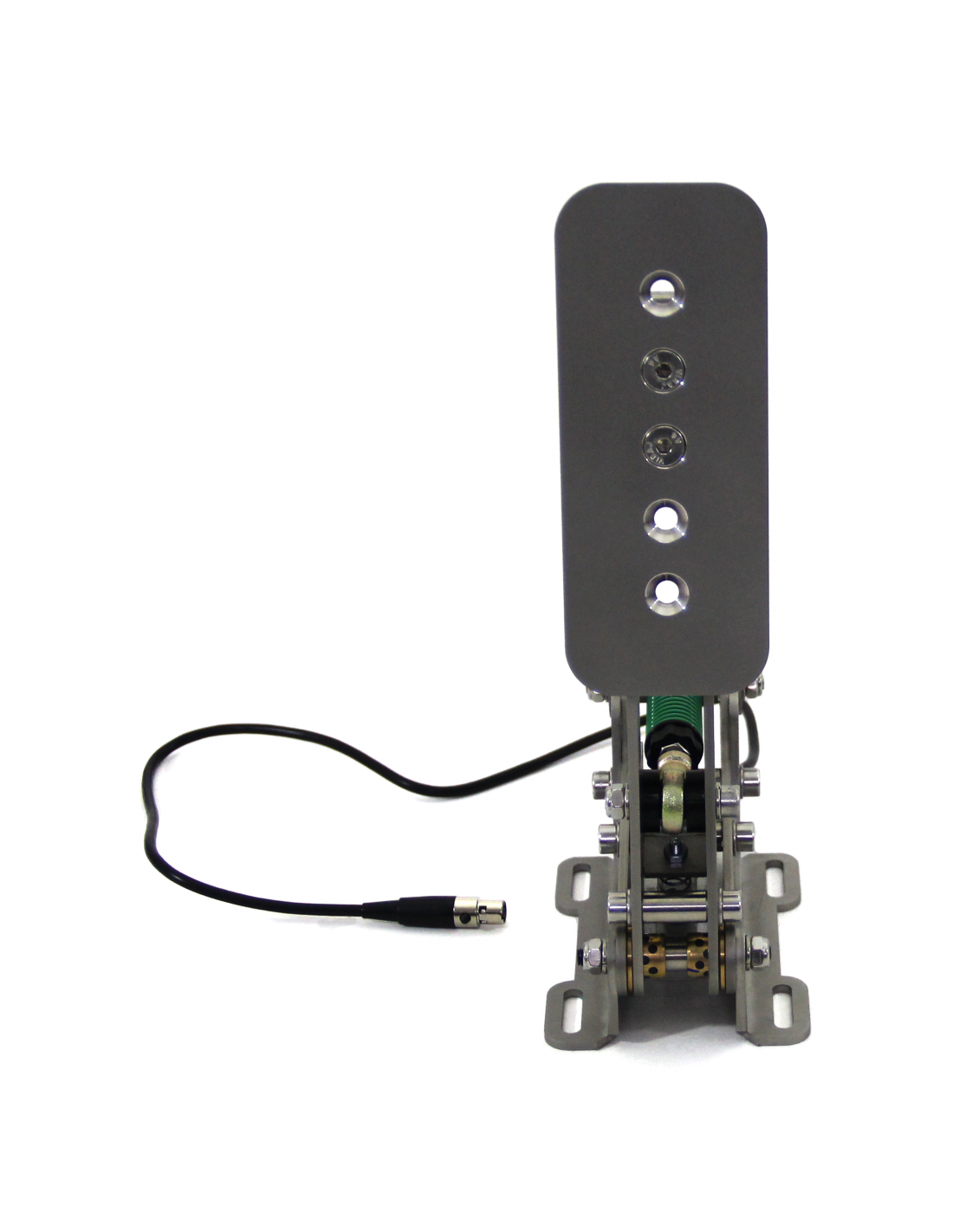

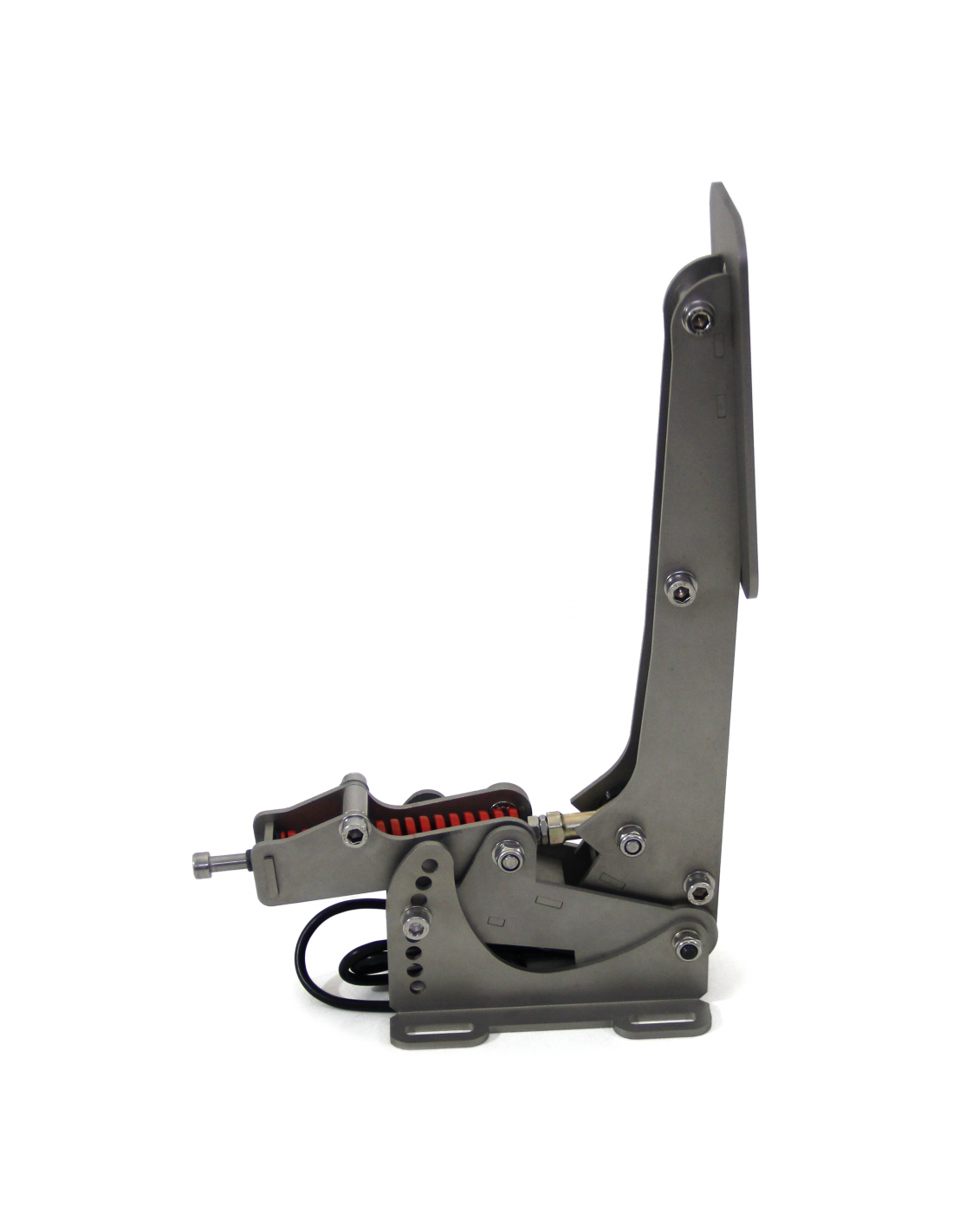

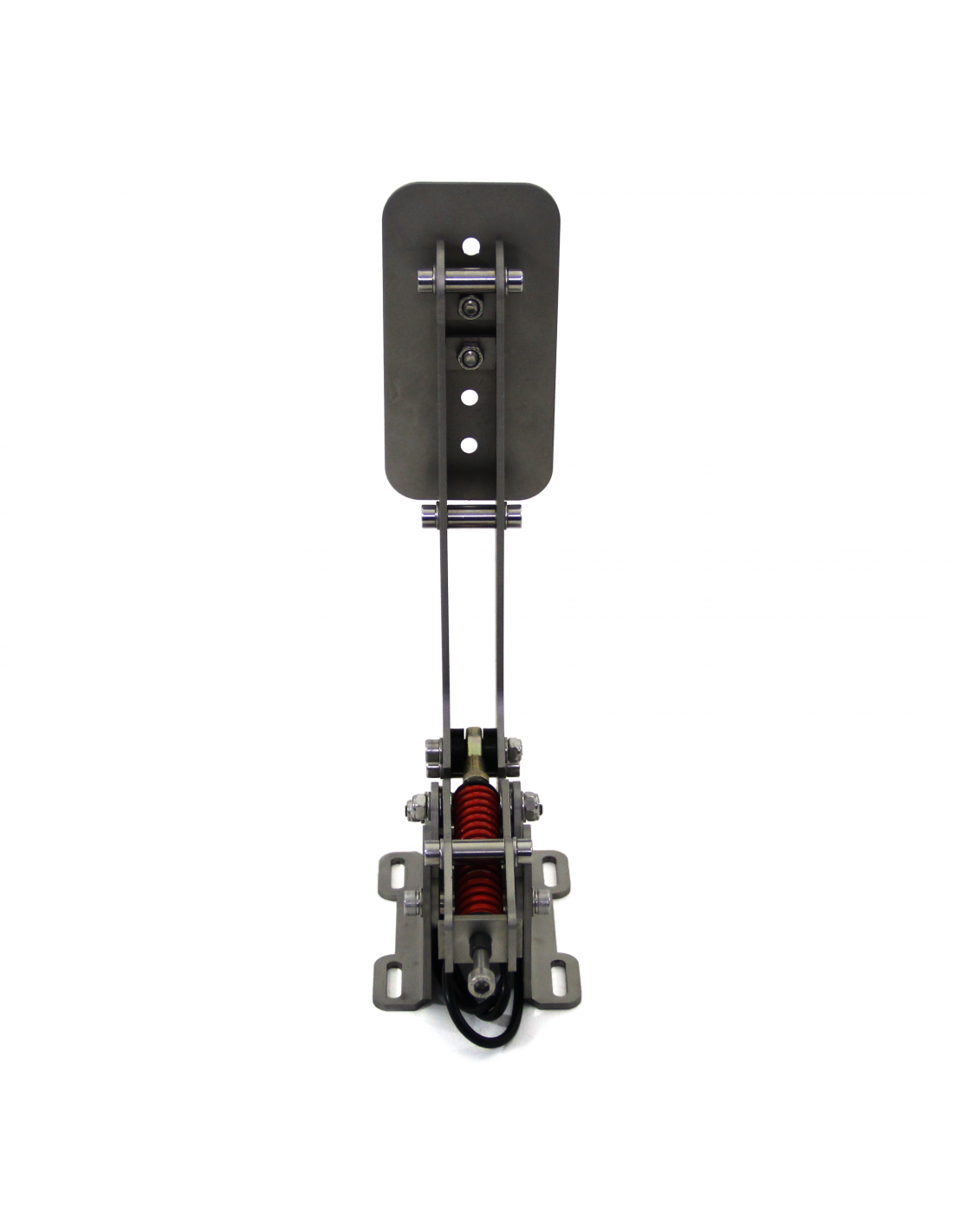

Throttle

• made of 3mm stainless steel sheet with blasting surface treatment without sharp edges
• all metal parts made of stainless steel of A2 quality
• 20kg loadcell (pressure) sensor with 60cm shielded cable and professional XLR mini connector
• dimensions 18x28x8.5 cm (length, height, width) and weight 1400g
• high quality self-lubricated bronze bearing with graphite in pedal axis
• Iglidur bearing at the rear for even greater accuracy and smoothness of operation

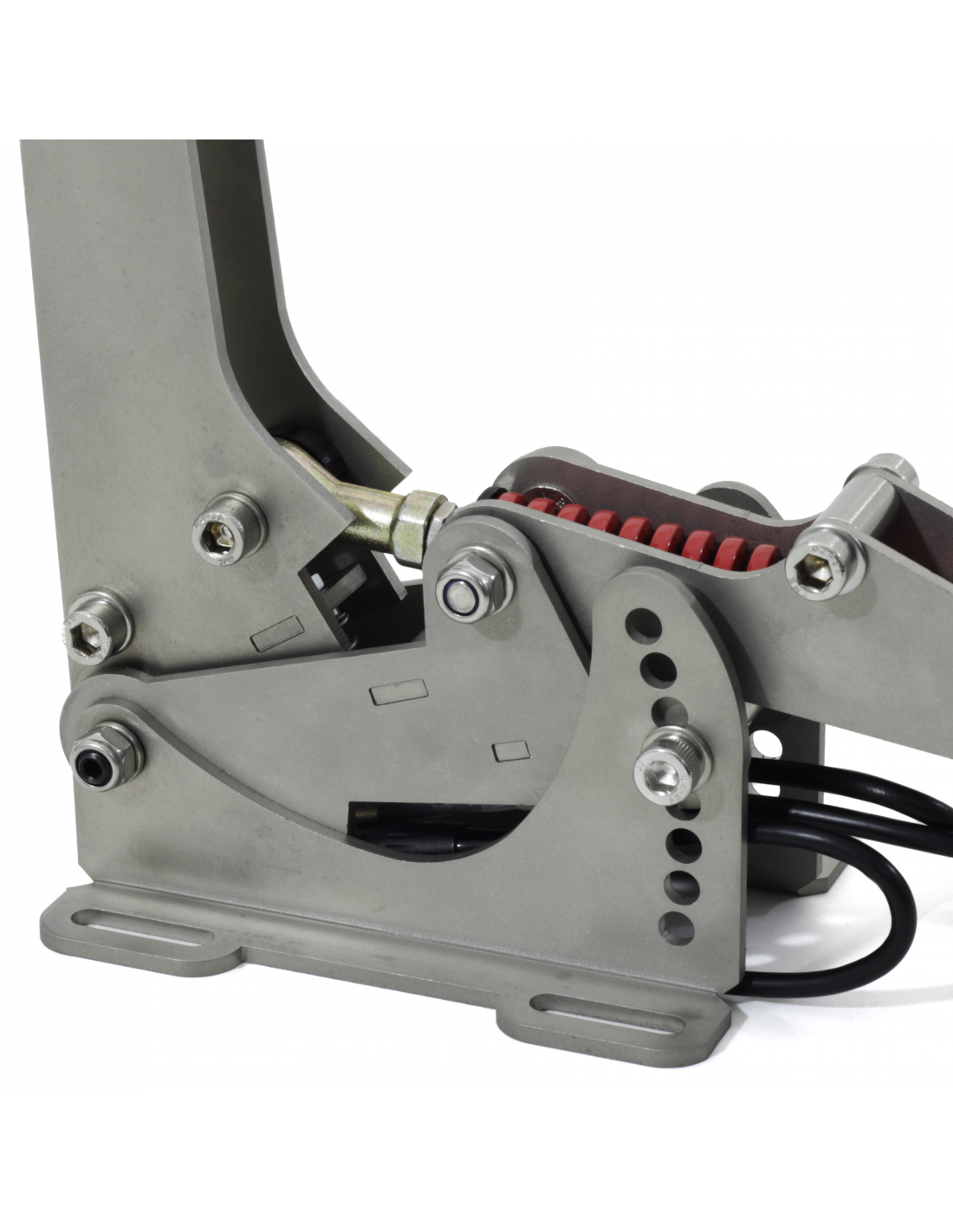

• adjustable angle and pedal height
• adjustable length and stiffness of the throttle pedal operation
• possibility to purchase different spring hardnesses
• in the package is included a replaceable pedal stop – stainless steel for hard and precise stop / plastic for quit and softer stop

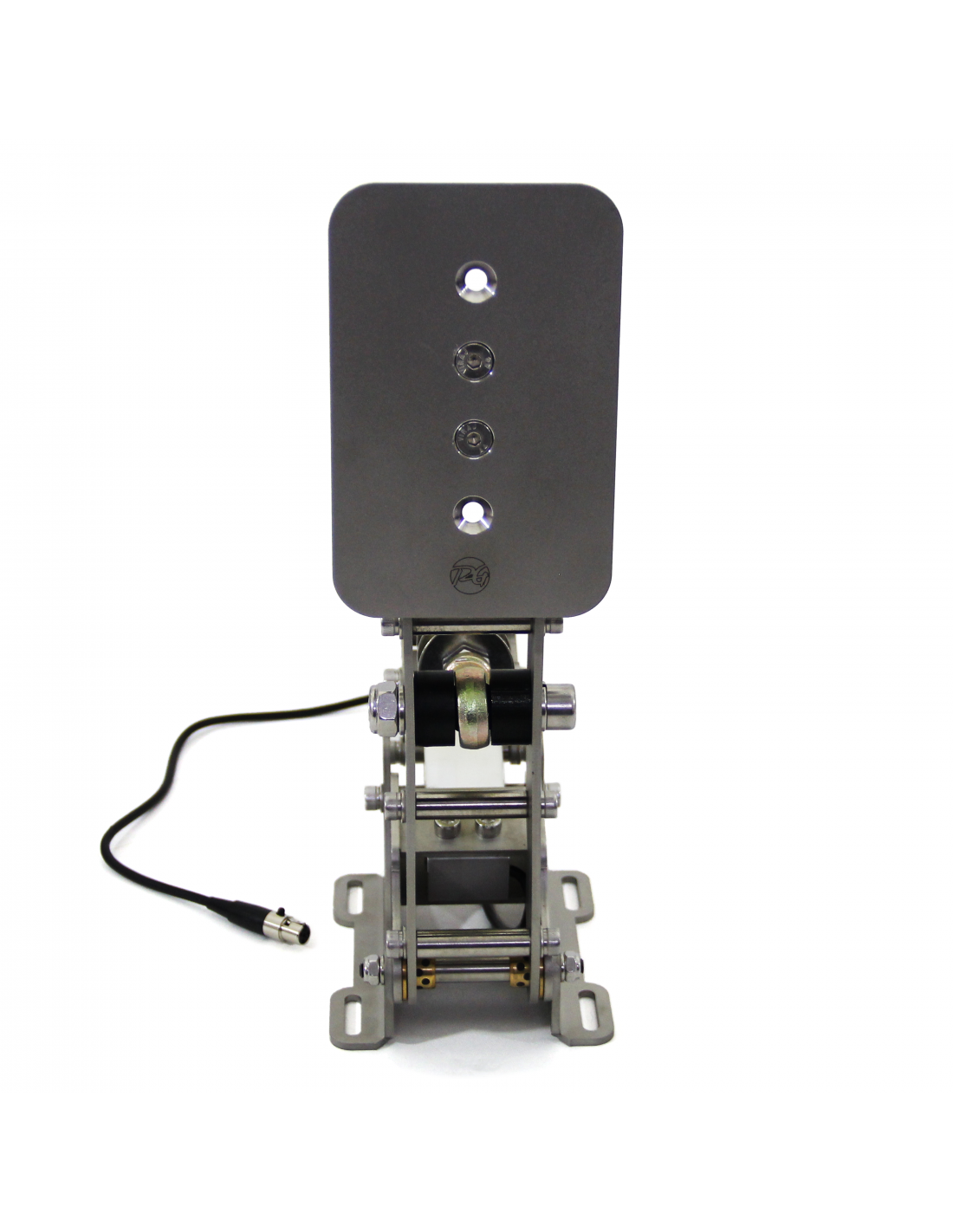

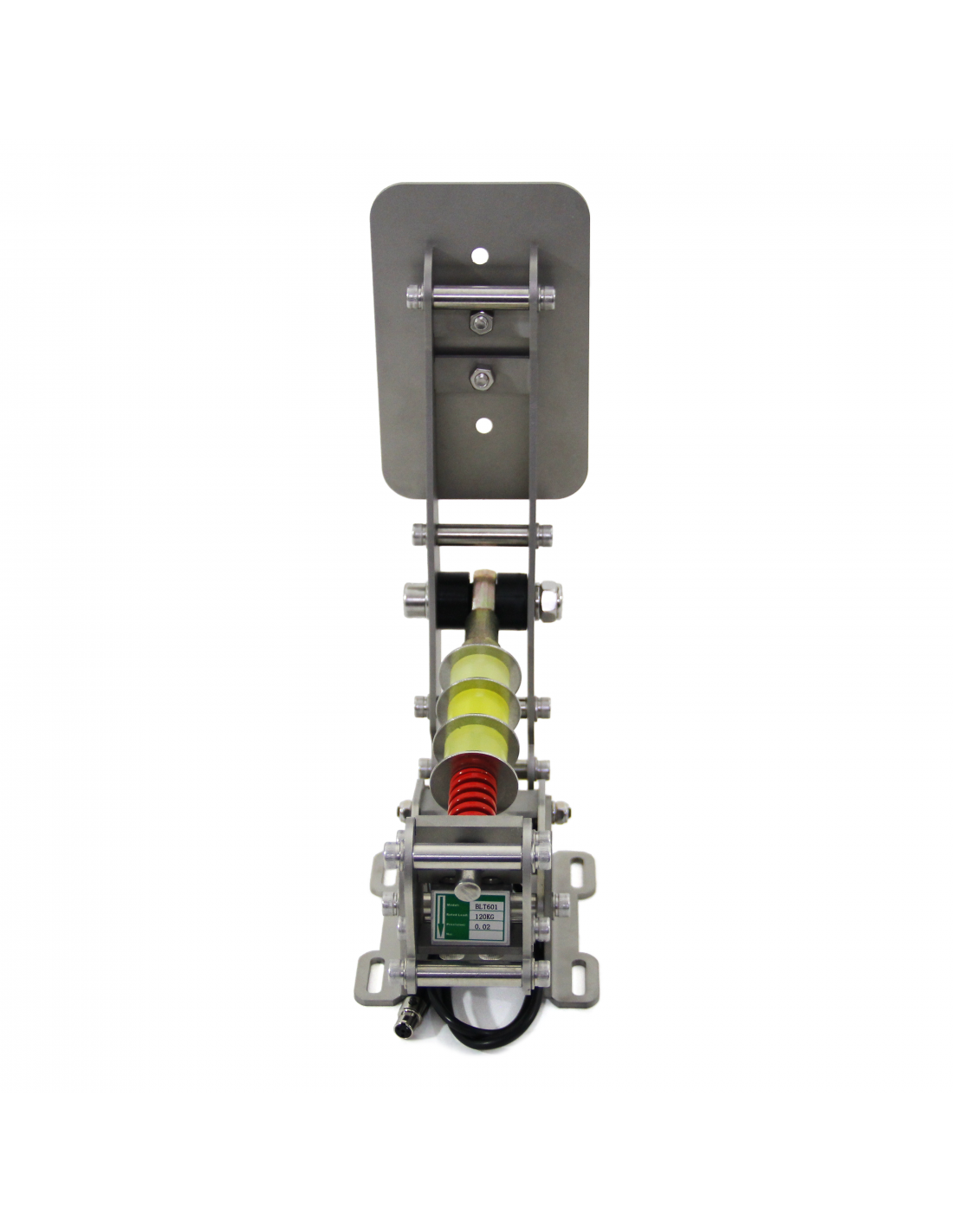

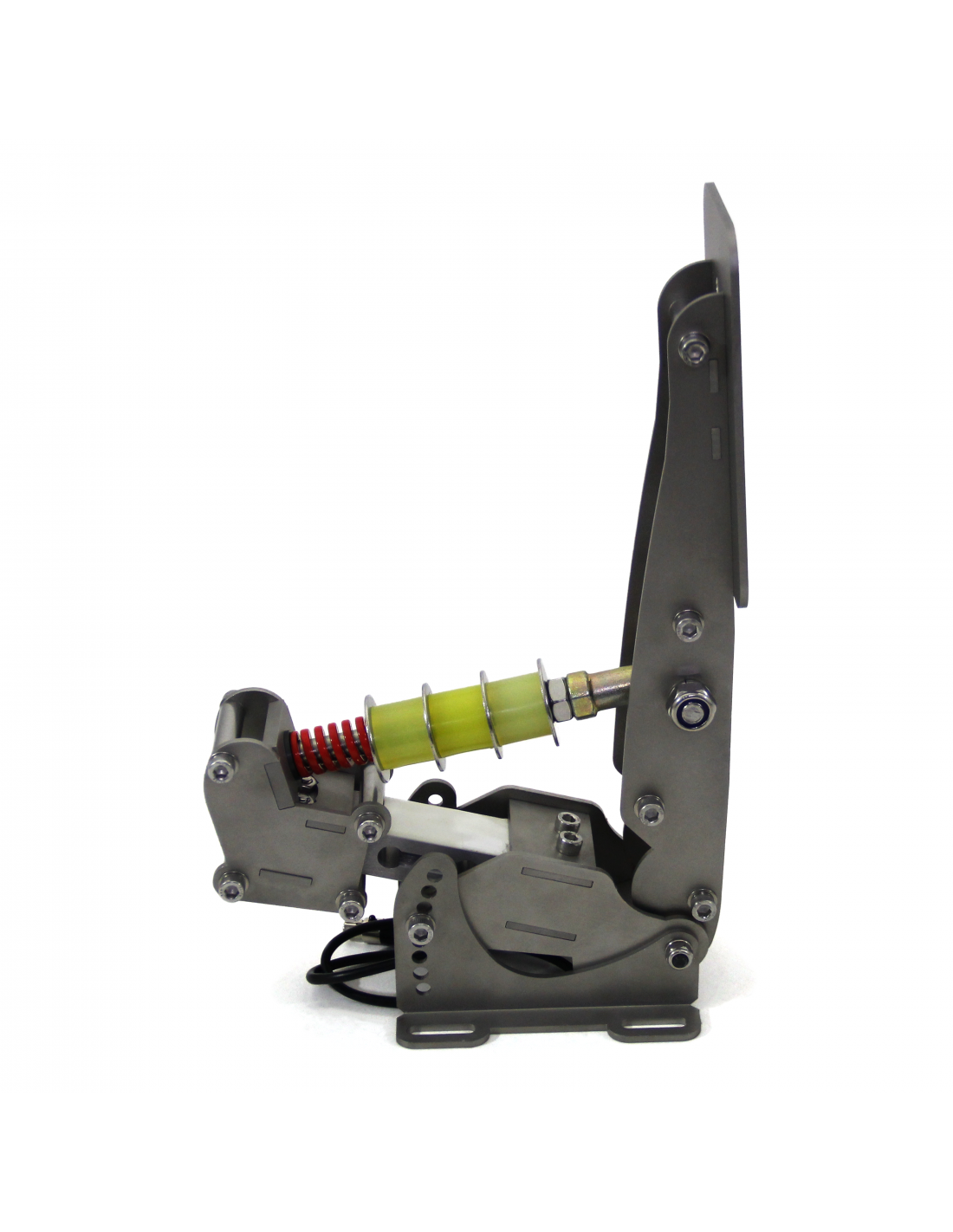

Brake

• made of 3mm stainless steel sheet with blasting surface treatment without sharp edges
• all metal parts made of stainless steel of A2 quality
• 120kg loadcell (pressure) sensor with 60cm shielded cable and professional XLR mini connector
• dimensions 21x33x10.5 cm (length, height, width) and weight 2400g

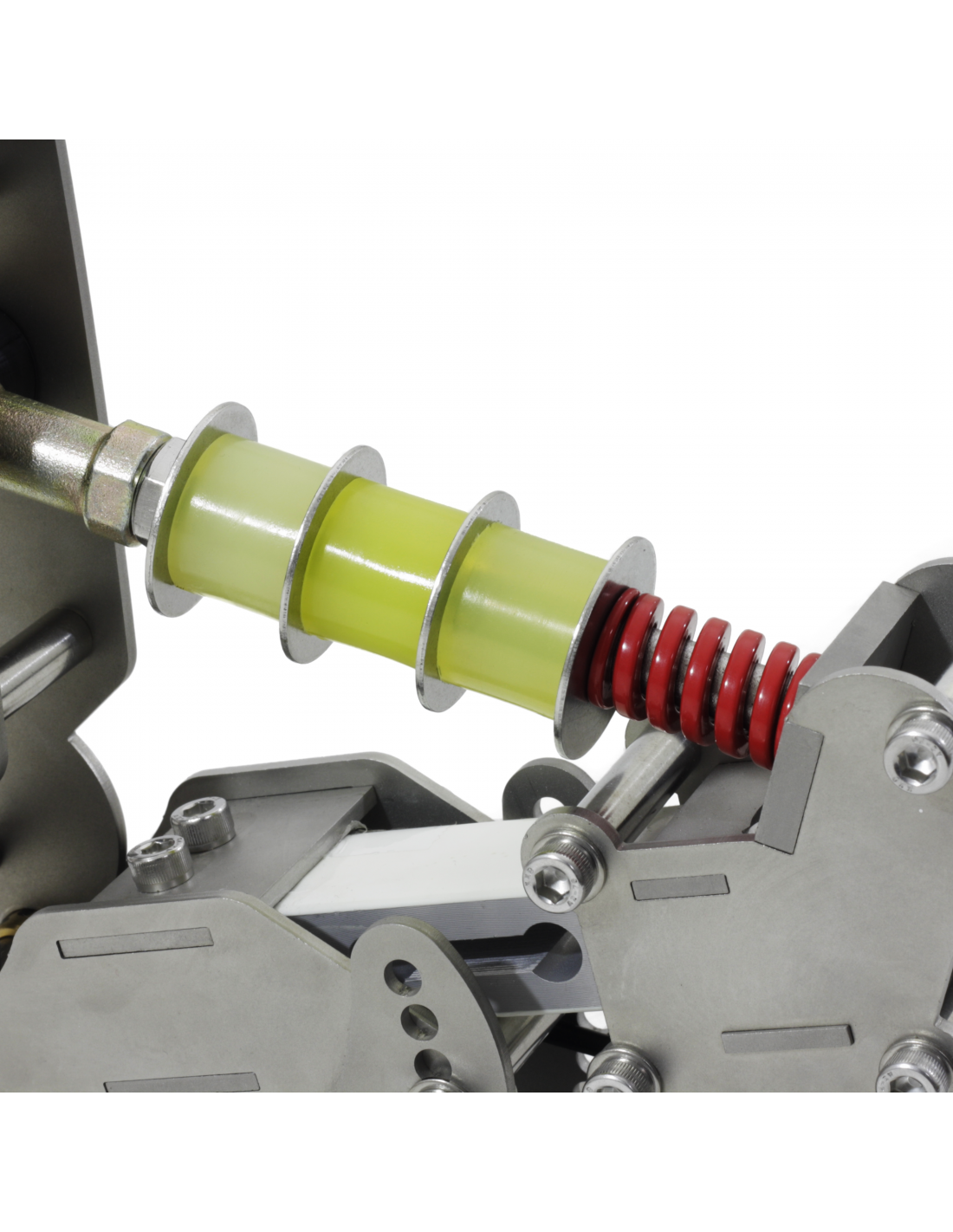

• long lasting custom elastomers made by pressure injection in high quality supplied in three hardnesses
• in the basic package 3x soft, 2x medium and 1x hard elastomer
• high quality self-lubricated bronze bearing with graphite in pedal axis
• Iglidur bearing at the rear for even greater accuracy and smoothness of operation
• adjustable angle and pedal height
• reinforced 6mm critical component

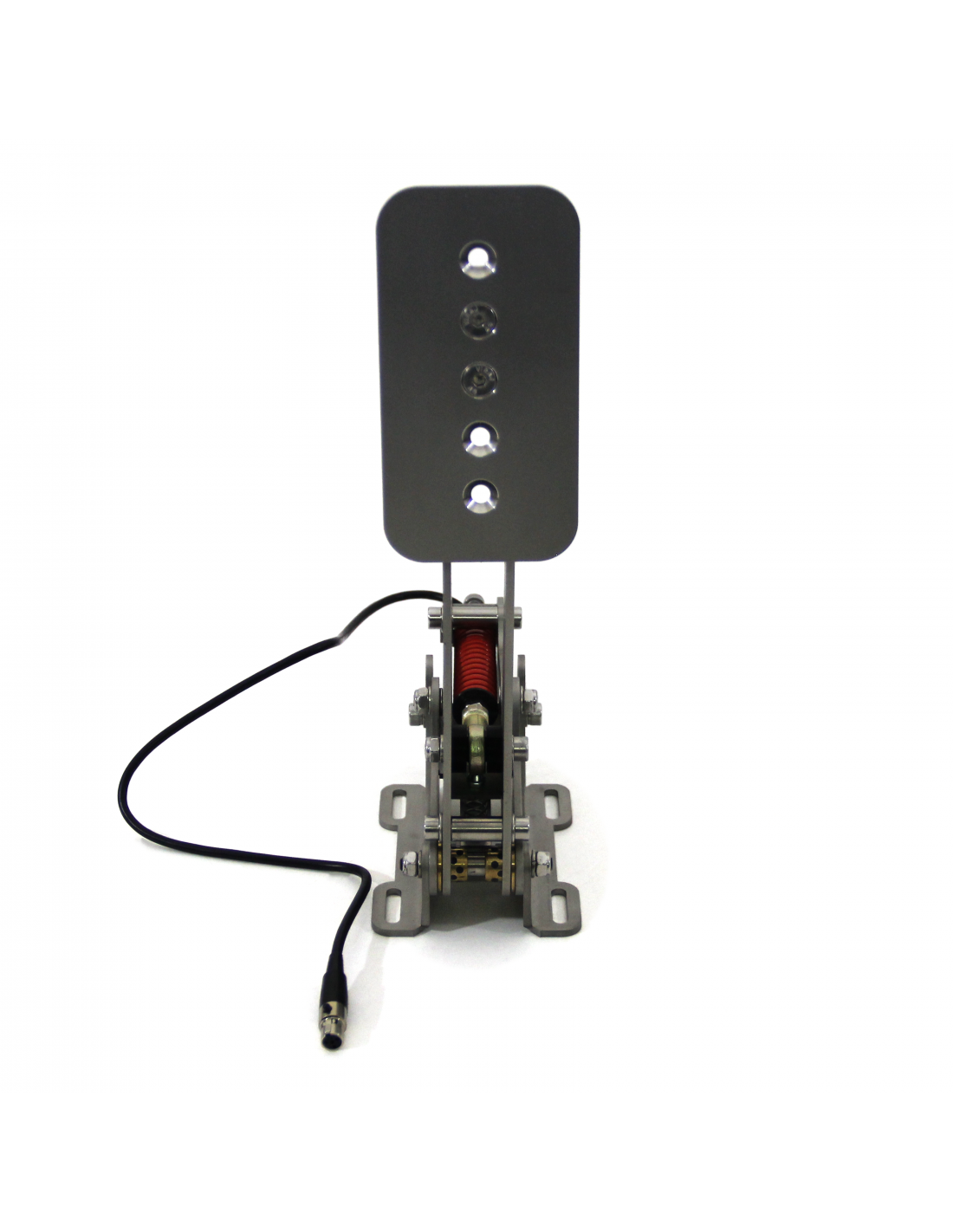

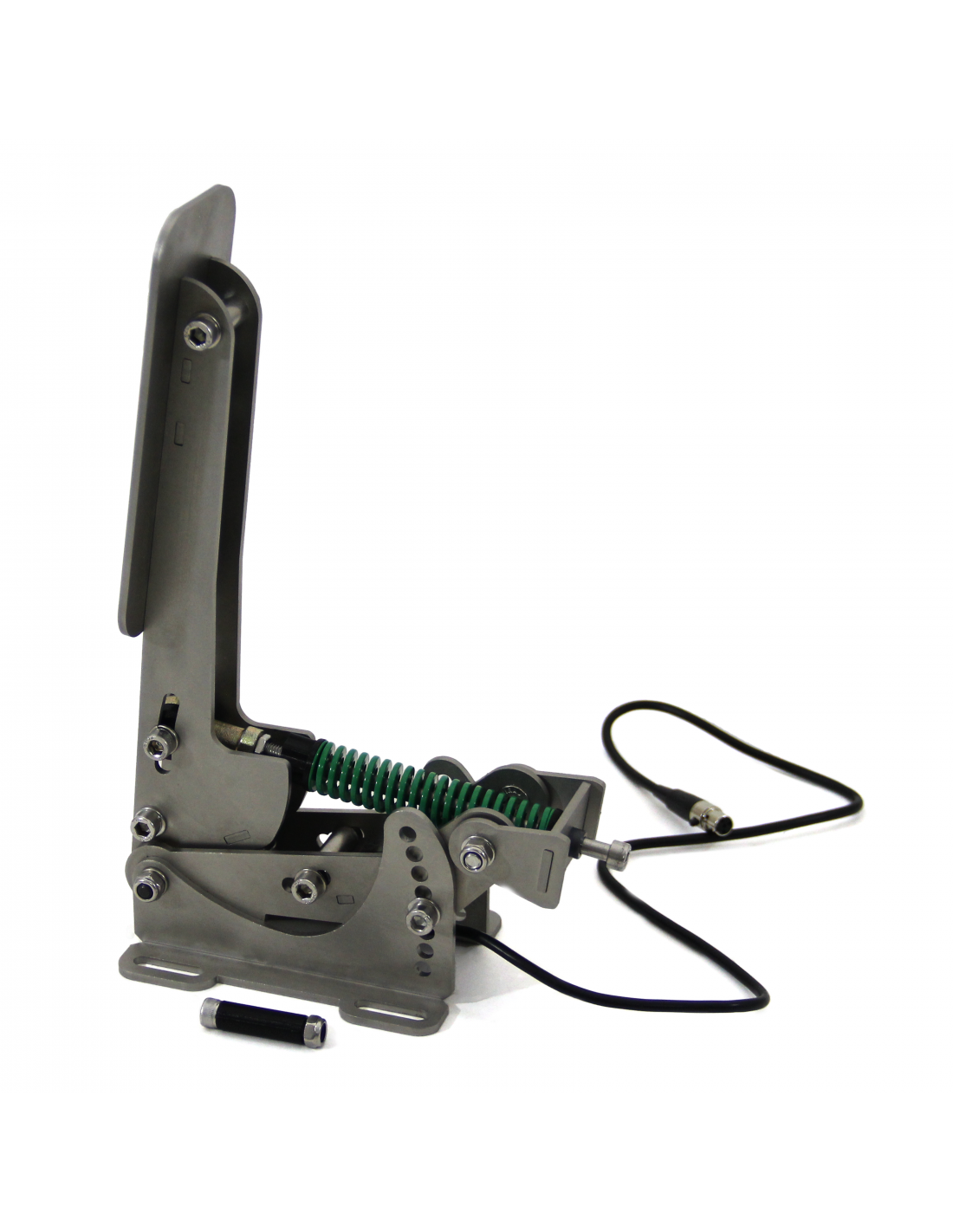

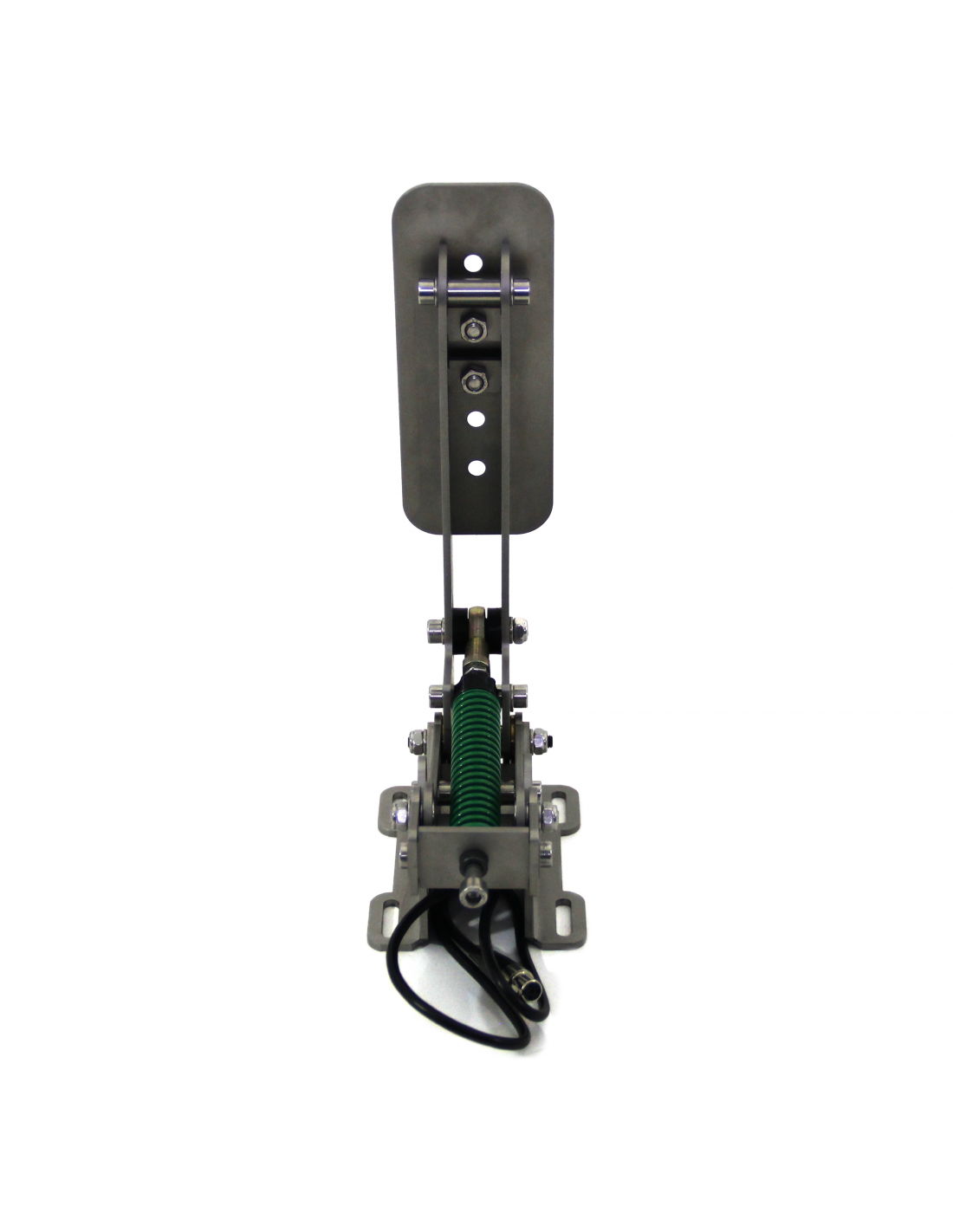

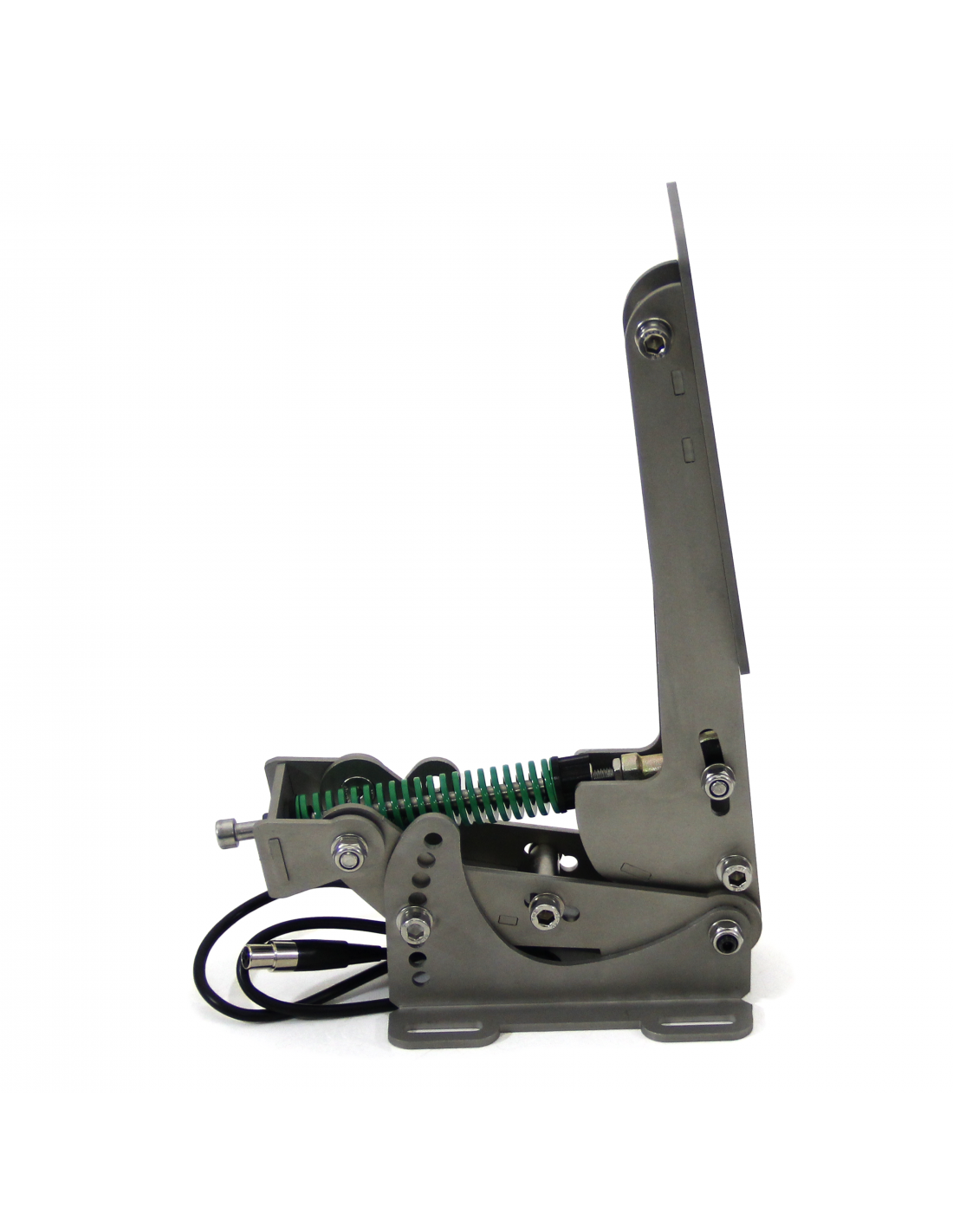

Clutch

• made of 3mm stainless steel sheet with blasting surface treatment without sharp edges
• all metal parts made of stainless steel of A2 quality
• 20kg loadcell (pressure) sensor with 60cm shielded cable and professional XLR mini connector
• dimensions 20x31x8.5 cm (length, height, width) and weight 1600g
• high quality self-lubricated bronze bearing with graphite in pedal axis
• Iglidur bearing at the rear for even greater accuracy and smoothness of operation
• adjustable angle and pedal height
• possibility to purchase different spring hardnesses to change pedal stiffness

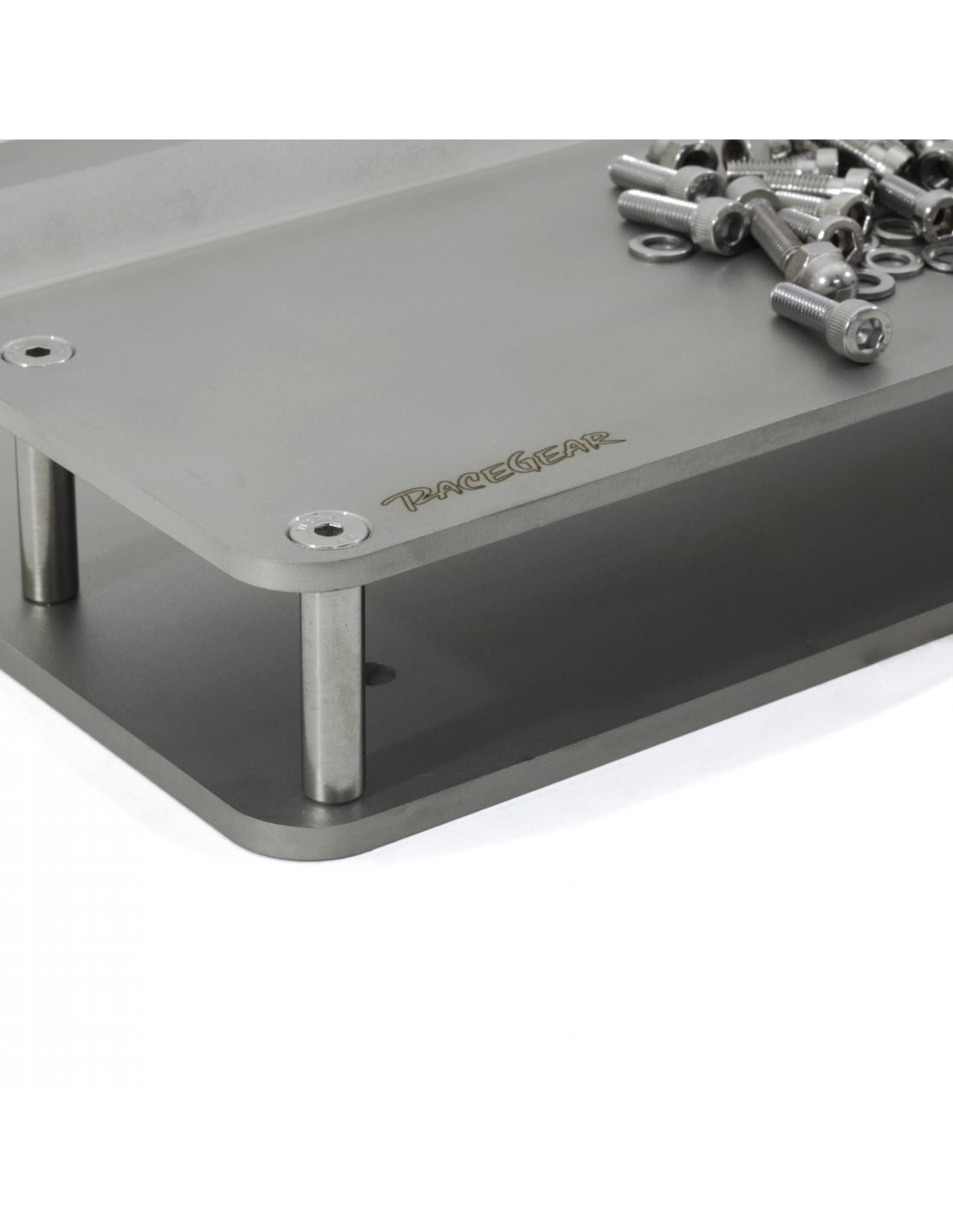

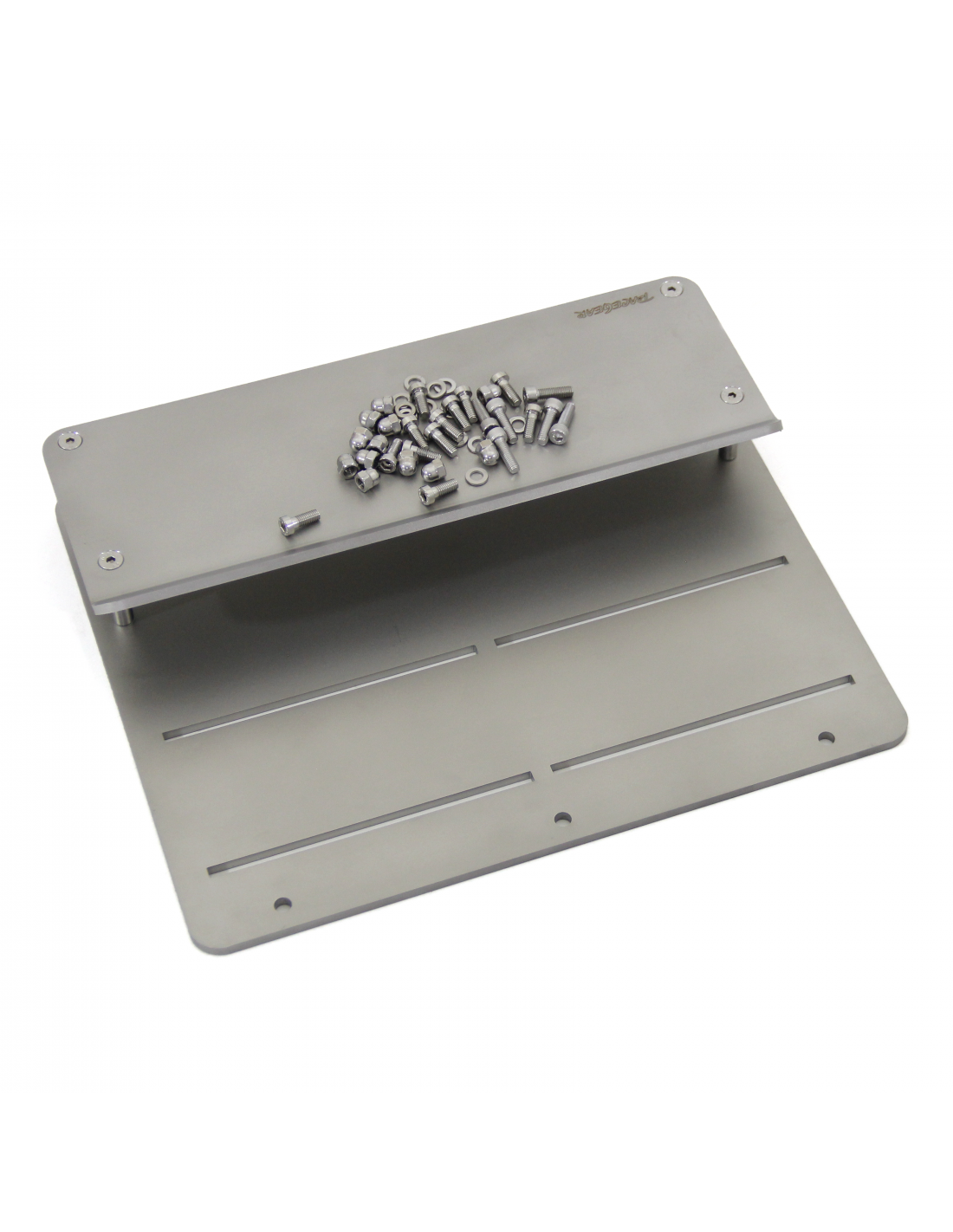

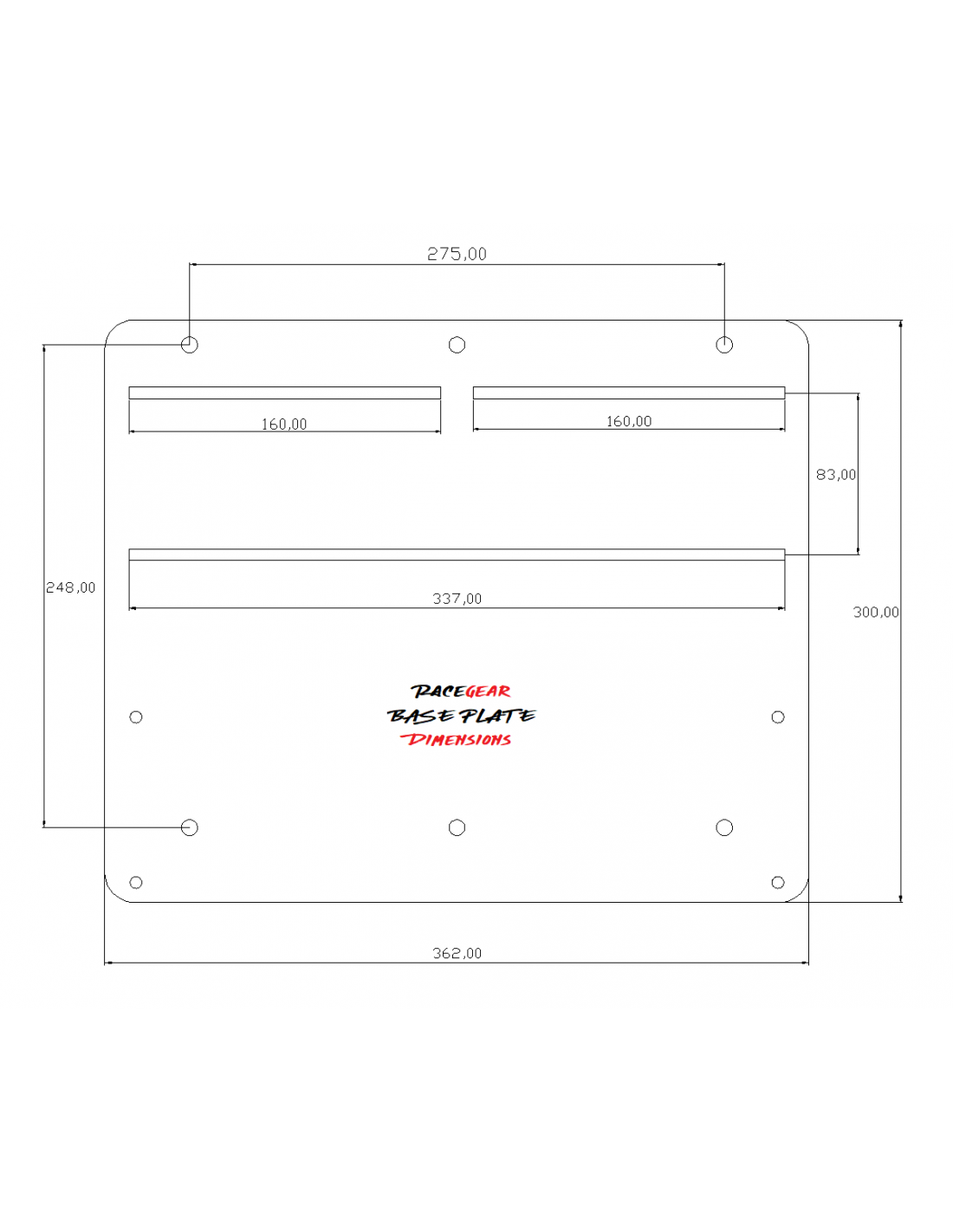

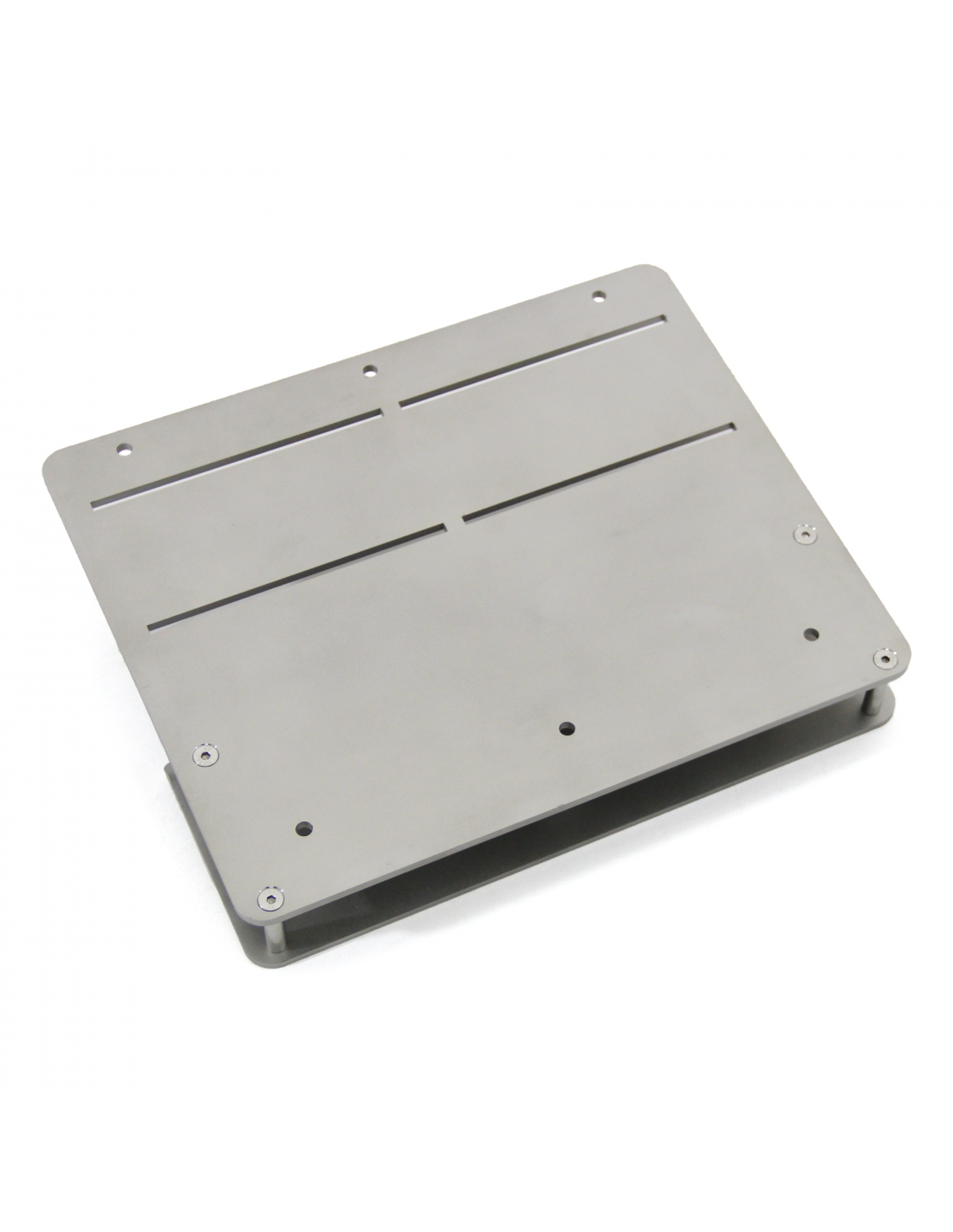

Base pedal plate

• extra-strong and rigid two-piece stainless steel base pedal plate with blasting surface treatment
• base pedal plate supplied including fasteners (all stainless steel quality A2)
• top with dimensions of 13.5x36 cm (length, width), thickness 5mm and weight 1950g with bending for heel denial
• bottom with dimensions of 30x36.2 cm (length, width), thickness 6mm  and weight 4850g
• compatible with standard Alu rigs 8020/8040 and cockpits Fanatec Rennsport V2, Sim Lab, Track Racer, OverPower and others (see diagram image below)
• suitable for mounting most commercially available pedals on the market (please contact us if in doubt)

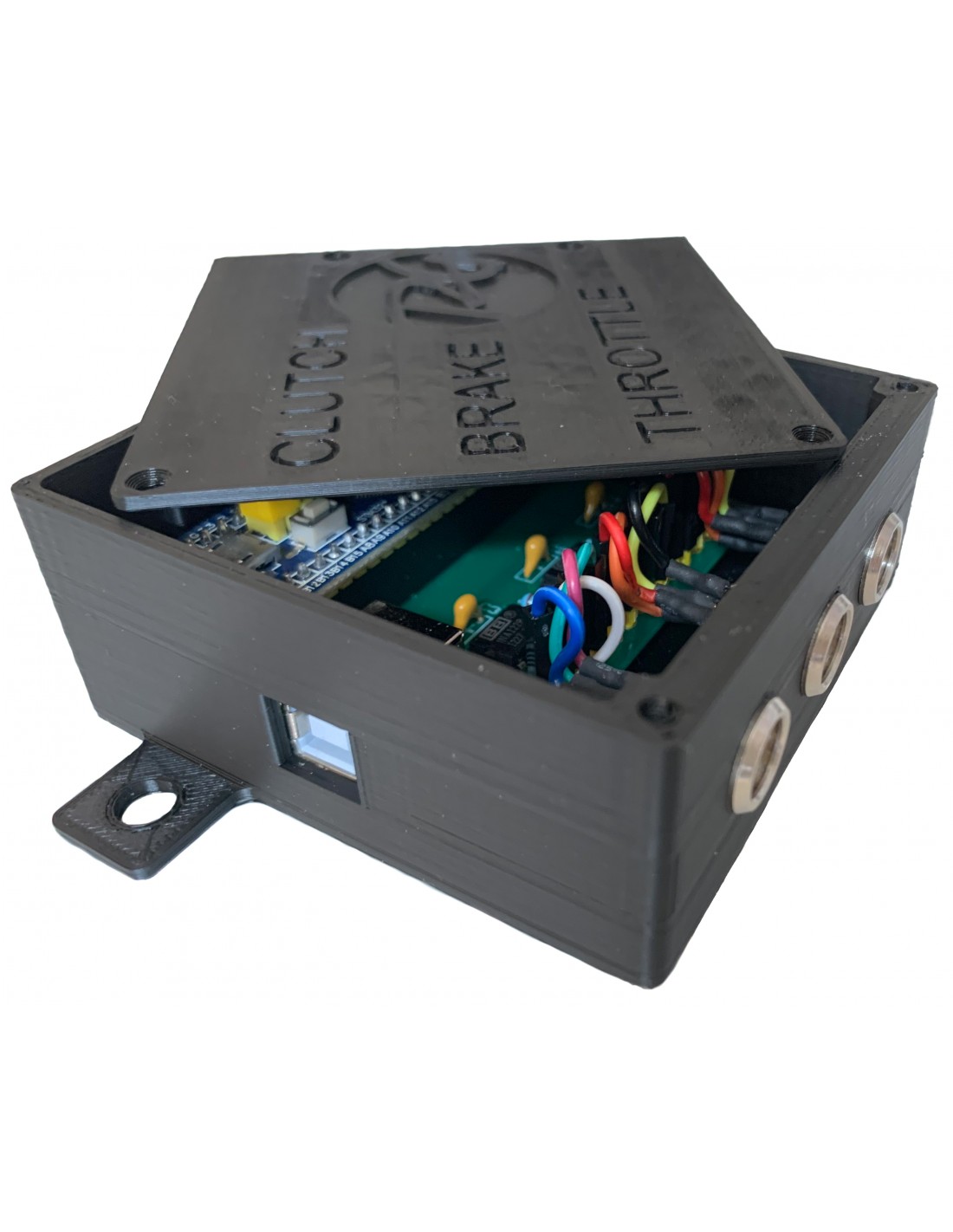

Electronics and software

• own 16-bit electronics with custom firmware
• professional XLR mini connectors
• box created by 3D printing
• mounting handles for mounting on ALU rigs
• three inputs for throttle, brake and clutch
• high-quality 2m USB cable with ferrite core
• custom calibration software with pedals shape and profiles that can be switched without leaving the game
