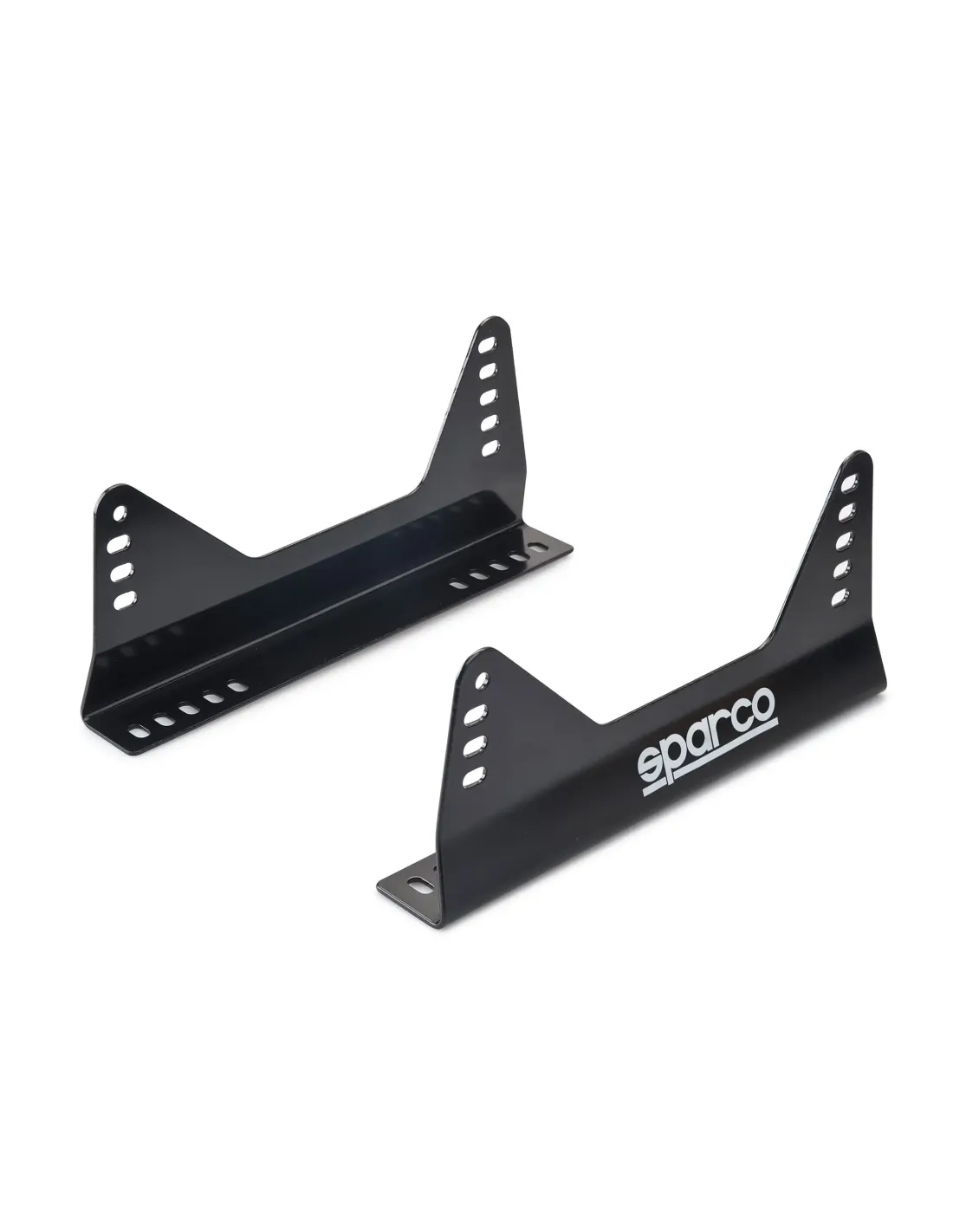

Sparco steel side mount bucket seat brackets

Solid Foundation for Your Racing Seat

Original Sparco steel brackets (004901NR) are designed for the secure and rigid mounting of bucket seats. Constructed from 3mm thick steel, they provide maximum stiffness with zero flex, which is crucial for translating force feedback details in a sim rig or maintaining stability in a race car.

Maximum Adjustability

Thanks to their "tall" profile and multiple pre-drilled holes, these brackets allow for precise adjustment of the driver's position. You can freely adjust:

• Seating Height: For the ideal field of view and center of gravity.
• Seat Tilt/Rake: For maximum comfort and thigh support.

Compatibility and Installation

The brackets feature a standardized mounting hole spacing of 290 mm, which is the industry standard. This makes them compatible not only with Sparco seats (e.g., EVO, QRT, Circuit, REV) but also with most bucket seats from brands like OMP, Sabelt, or Recaro that use side mounting. They can be mounted directly onto Seat Sliders or fixed directly to the cockpit frame.

Technical Specifications:

• Material: Steel (3 mm thickness)
• Finish: Black Powder Coated
• Seat Hole Spacing: 290 mm (FIA Standard)
• Overall Length: 360 - 400 mm
• Set Weight: approx. 2.3 kg
• Box Contents: Left and Right bracket (kit for 1 seat)

Note: Mounting hardware (bolts) for attaching the seat to the brackets is usually not included with the brackets but is typically supplied with the seat itself.
